Console Guides

WebSocket Events

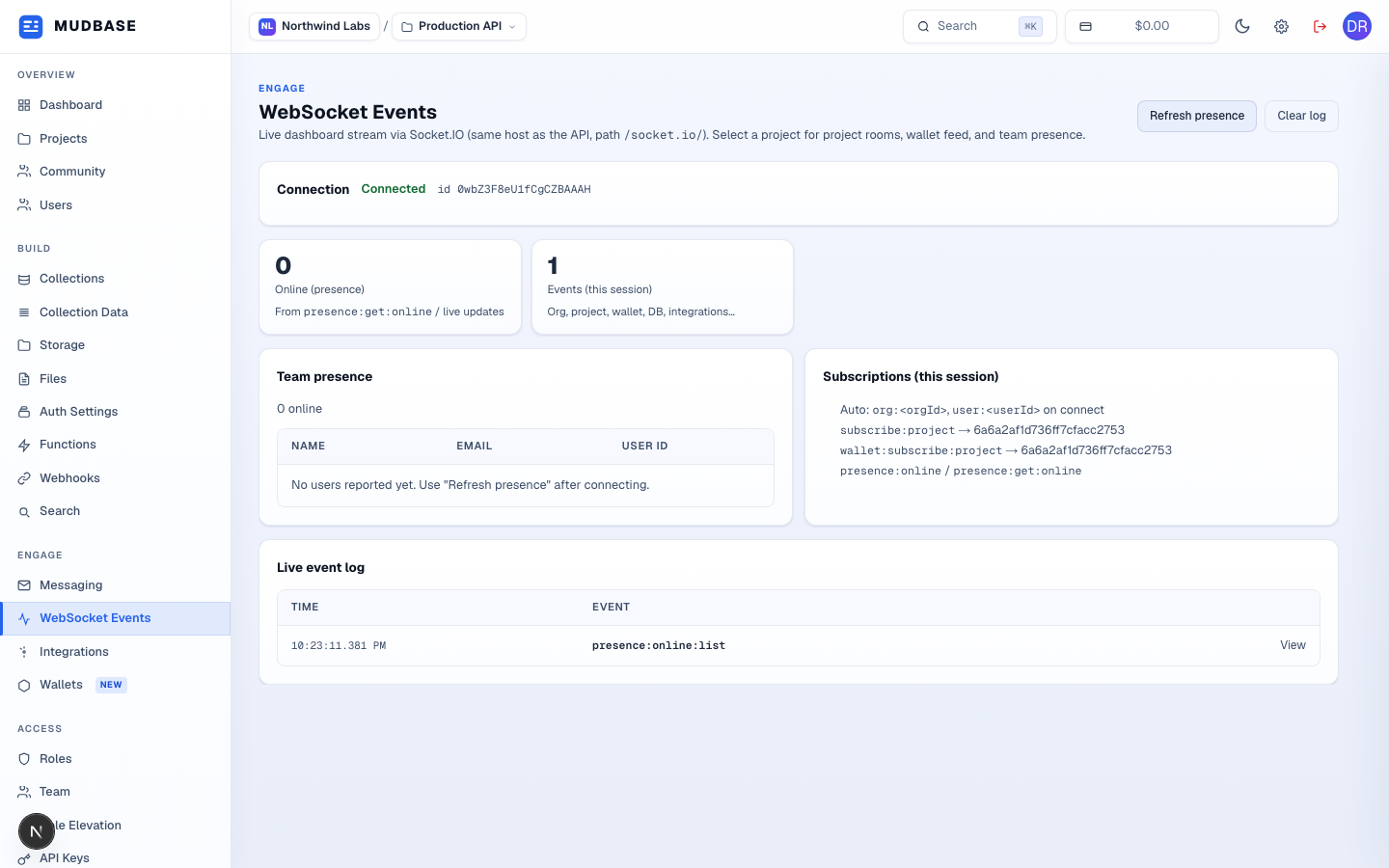

A live view into the same Socket.IO stream your own app can connect to — connection status, team presence, active subscriptions, and every event received this session, with a payload inspector on each one.

Find it

WebSocket Events is in the sidebar under the Engage group (labeled Realtime internally).

1234567

1. 1Connects over the same host as the API at path /socket.io/, JWT authenticated. Connected shows the live socket id; Connecting…, Disconnected, and Error are the other states, with a reconnect handled automatically by the client.
2. 2Re-emits presence:get:online for the selected project — only enabled while connected with a project selected.
3. 3Clears the event log below without disconnecting the socket.
4. 4Online (presence) counts teammates currently viewing this project's dashboard; Events (this session) counts every socket event received since the page loaded (or since Clear log).
5. 5Other team members with the dashboard open on this project right now. A quiet team — including a solo founder in their own org — legitimately shows 0 online here; it does not include your own connection.
6. 6What this session auto-joined on connect: the org and user rooms always, plus subscribe:project, wallet:subscribe:project, and presence events once a project is selected.
7. 7Every event this socket has received — org, project, wallet, database, and integration events all land here (connect/disconnect/ping/pong are filtered out as noise). Click any row to inspect its payload.

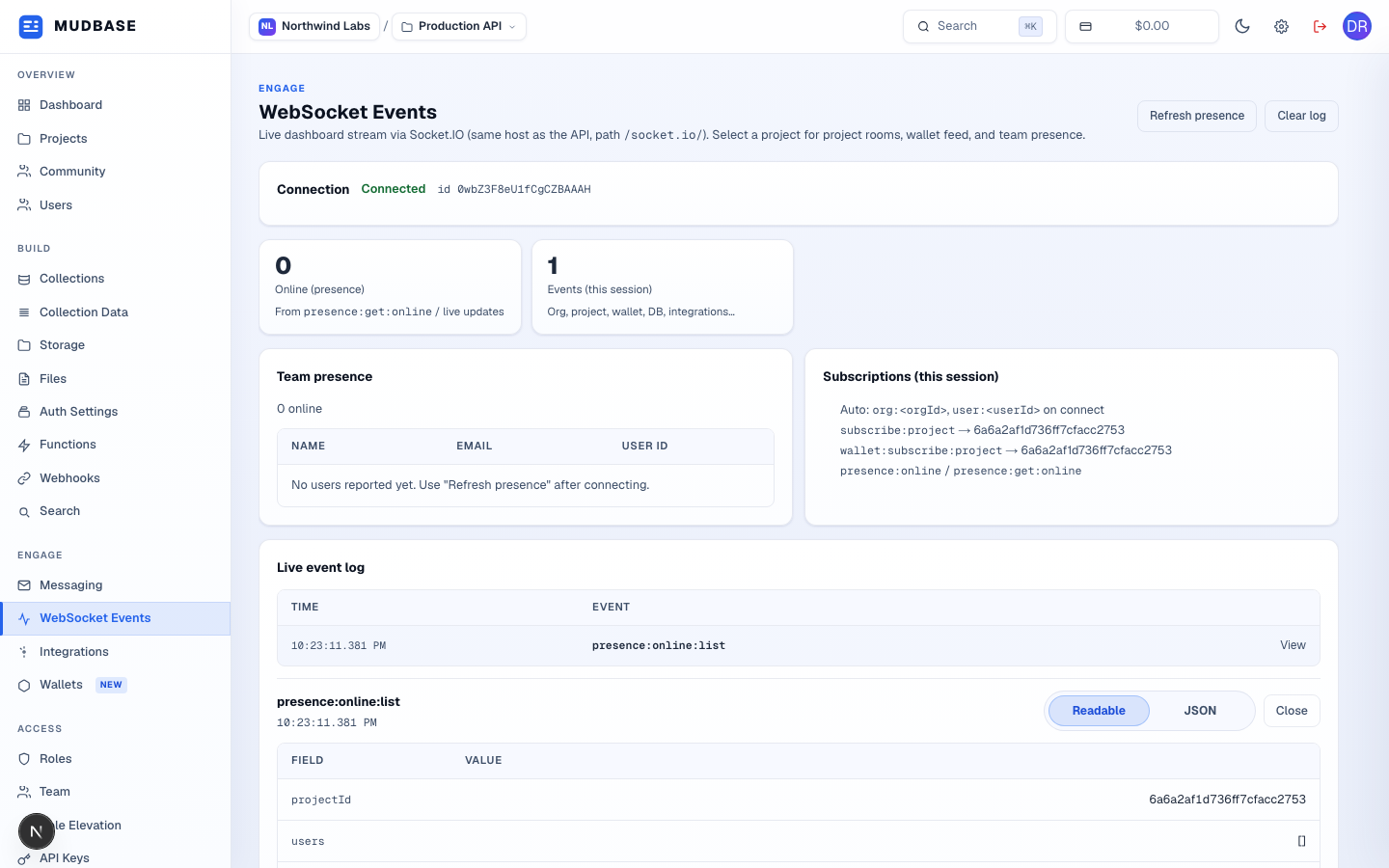

Inspect a payload

89

1. 8Click a row (or focus it and press Enter/Space) to open its detail panel.
2. 9Readable lists the payload's top-level fields as a table (capped at 24 keys); JSON shows the raw payload. Close collapses the panel without leaving the log.
