Wallet Webhook

Edit a wallet webhook's delivery settings, send a test delivery, and review its delivery log — separate from the general-purpose project Webhooks page.

Find it

There is no sidebar entry for this page — it's reached by clicking a webhook row in the Wallet Webhooks list on the Wallets page (not yet covered in this guide set). It's a project-scoped, non-custodial-wallet-specific webhook, distinct from the project-wide Webhooks page.

Summary, Edit webhook

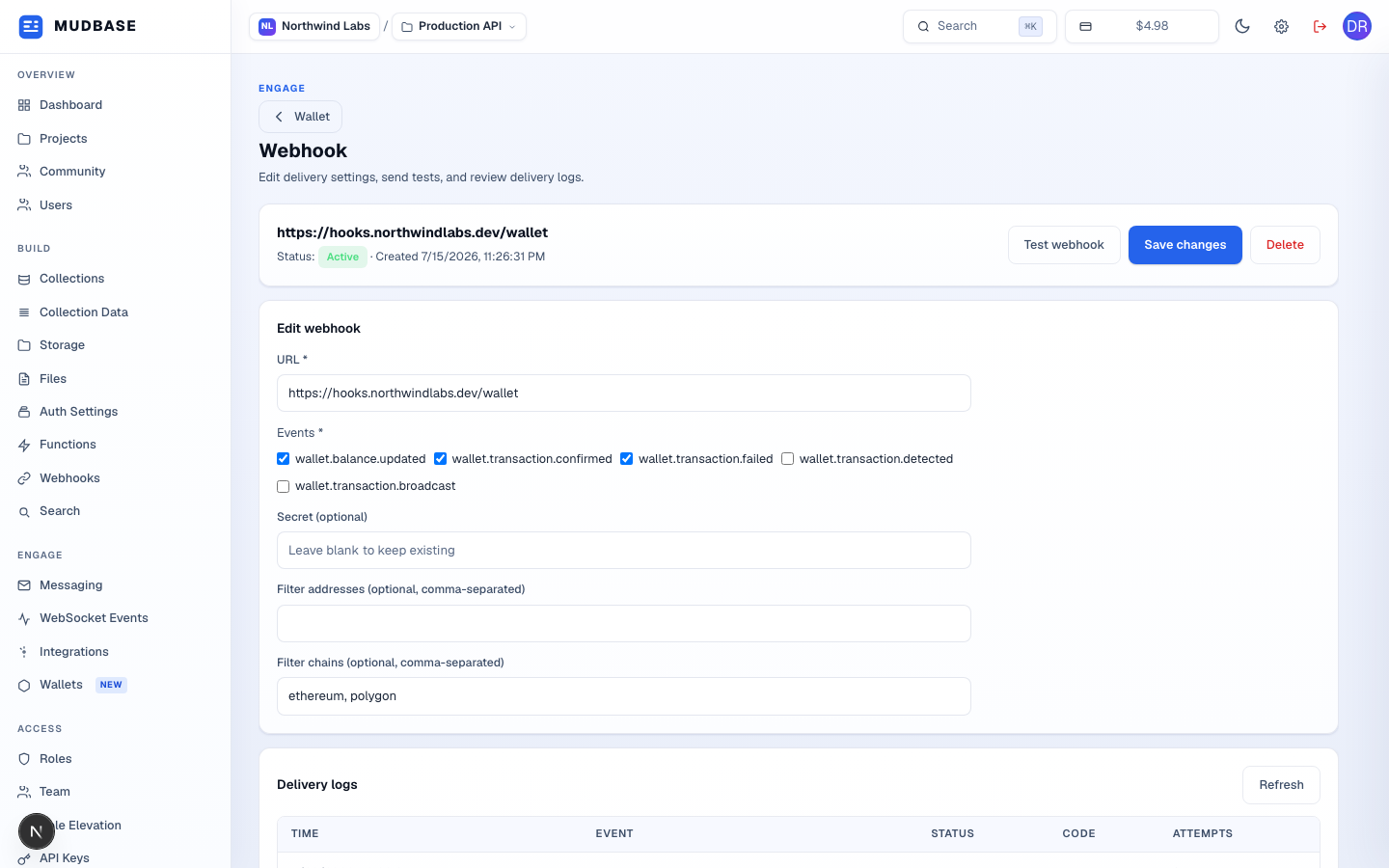

Wallet Webhook Details page with a summary card showing the URL, Active status, and created date alongside Test webhook, Save changes, and Delete buttons, and an Edit webhook form with URL, event checkboxes, secret, and filter fields
An active webhook with 3 of 5 events selected and a chain filter, no address filter
  1. Returns to the Wallets page.
  2. The webhook's URL, an Active/Inactive badge, and when it was created.
  3. Opens a dialog to send one test payload for an event you pick, HMAC-signed with a secret you type in — a live delivery attempt to this webhook's real URL, not a dry run.
  4. Persists every field in the Edit webhook form below via one PATCH request.
  5. Opens a confirmation dialog, then permanently removes this webhook.
  6. URL and at least one event are required. The five possible events are wallet.balance.updated, wallet.transaction.confirmed, wallet.transaction.failed, wallet.transaction.detected, and wallet.transaction.broadcast. Secret is optional and write-only — leave it blank to keep the existing one. Filter addresses/chains are optional, comma-separated allowlists; leaving both empty delivers every matching event project-wide.

Delivery logs

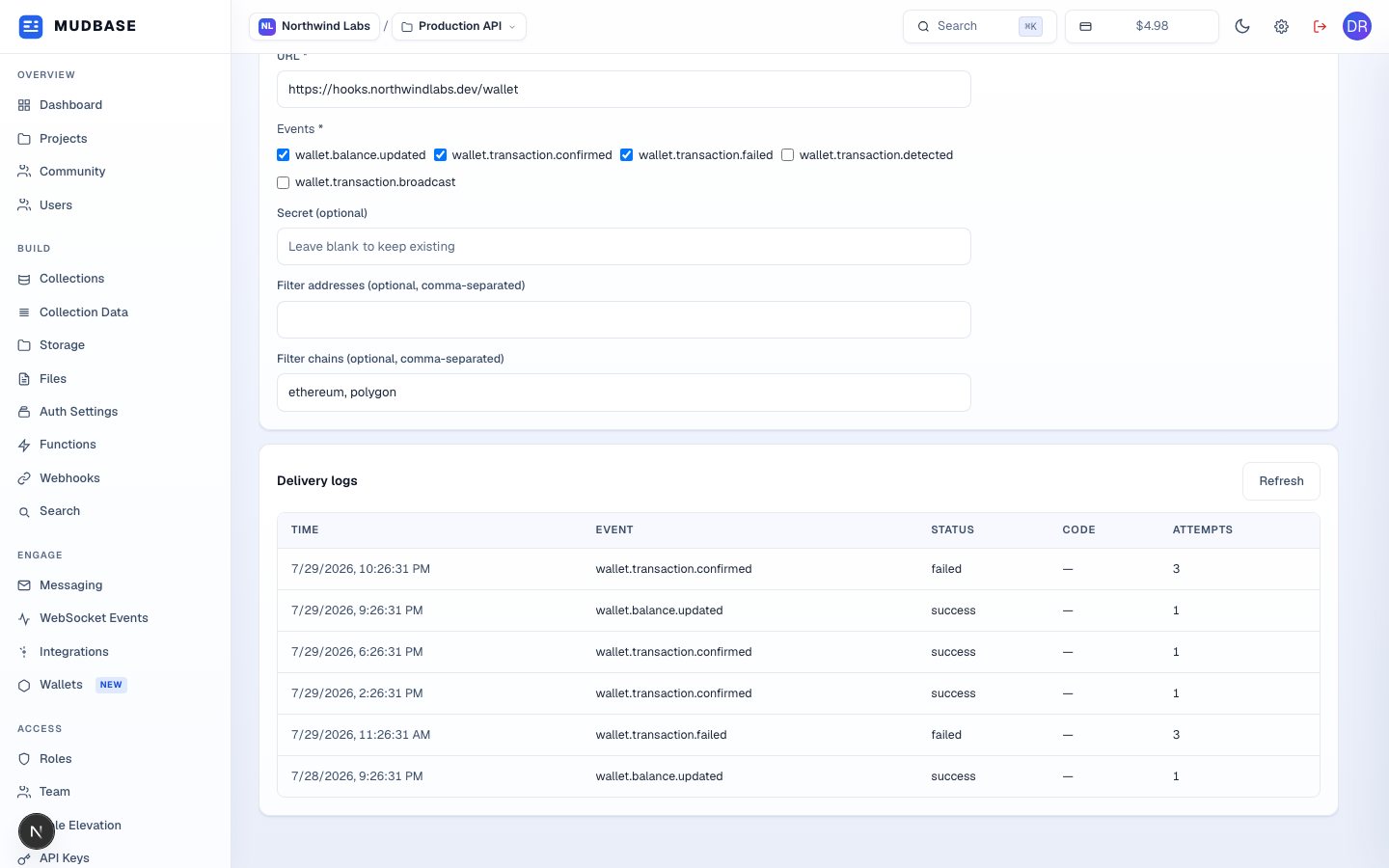

Delivery logs card with a Refresh button and a table of six delivery attempts showing time, event, status, code, and attempts columns; the Code column reads a dash for every row
Six real delivery attempts — four succeeded, two failed with retries
  1. Up to the last 50 delivery attempts for this webhook, newest first: timestamp, event, delivery status (success / failed / retrying / delivering), an HTTP status code, and the attempt count out of a 3-attempt maximum before Mudbase stops retrying. Click Refresh to pull the latest log without leaving the page.
Warning
The Code column reads a dash for every row in this build — a real field-name mismatch, not a seeding gap. The delivery log record (WebhookLog) stores the response status under response.status, but the console's expected shape for this table is a top-level statusCode field, which the API never populates. Status, Event, and Attempts all read correctly from the same records.
